Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing

Model Number : V10905P

Brand Name : HAMAMATSU

MOQ : 1

Payment Terms : T/T

Certification : CE, FDA

Place of Origin : JAPAN

Contact Now

Hamamatsu V10905P X-Ray Image Intensifier
High-performance X-ray image intensifier with integrated HV power supply, optimized for PCB BGA industrial CT testing and non-destructive inspection applications.
Product Overview
V10905P X-Ray Image Intensifier features integrated HV power supply, high resolution capabilities, and is equipped with 24x30 film holder for superior X-ray imaging applications.
Key Features
  • Optimized for high magnification via 2-inch mode
  • Delivers superior resolution and outstanding contrast
  • Features minimal image distortion
  • Compatible with various camera types (Analog, Digital, etc.)
  • Integrated high-voltage power supply
Primary Applications
In-line X-ray inspection Industrial X-ray CT Non-destructive inspection
Applicable Samples
Electronic components Medicines & drugs Plastic components Metal components Foods Beverages Printed circuit boards
Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing
Technical Specifications
X-ray Image Intensifier
Parameter Description/Value Unit
Input window material (Thickness) Aluminum(t0.5mm) —
Input phosphor material Csl —
Output phosphor material P43 or equivalent —
Input surface field-of-view size 4 inch mode: φ99 mm
2 inch mode: φ50 mm		 mm
Output image size φ20 mm
Resolution (on input surface)(Typ.) 4 inch mode: 100 Lp/cm
2 inch mode: 110 Lp/cm		 Lp/cm
Conversion factor 3.4 cd/m²/uGy/s
Shading (Min.) 60 %
Contrast ratio 14 —
Operating ambient temperature +10 to +40 °C
Storage temperature -10 to +45 °C
Operating and storage humidity Below 85% (no condensation) —
Weight Approx. 8.0 kg

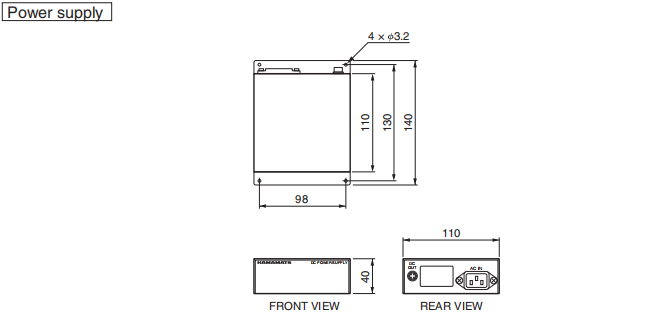

Power Supply
Parameter Description/Value Unit
Input voltage (AC) 100 to 240 V
Output voltage (DC) 24 V
Power consumption 30 VA
Weight Approx. 0.5 kg
Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing
Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing
Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing
Hamamatsu V10905P X Ray Image Intensifier For PCB BGA Industrial CT Testing
